Welcome to the fascinating World of distillation
Our company is passionately dedicated to designing and manufacturing distillation equipment ranging up to 5.000 liters to produce premium distillates from a variety of fruits as well as whiskey, rum, gin and all enjoyable alcohols.
We rely on our patented systems, which are based on decades of expertise from successful, professional manufacturers alcohol and combined with innovative thinking and local craftsmanship.
The result of this dedication is reflected worldwide in the numerous outstanding awards for the distillates from our satisfied customers.
passion for distilling
All of the following systems are ready for collection/shipping within 2-4 days.

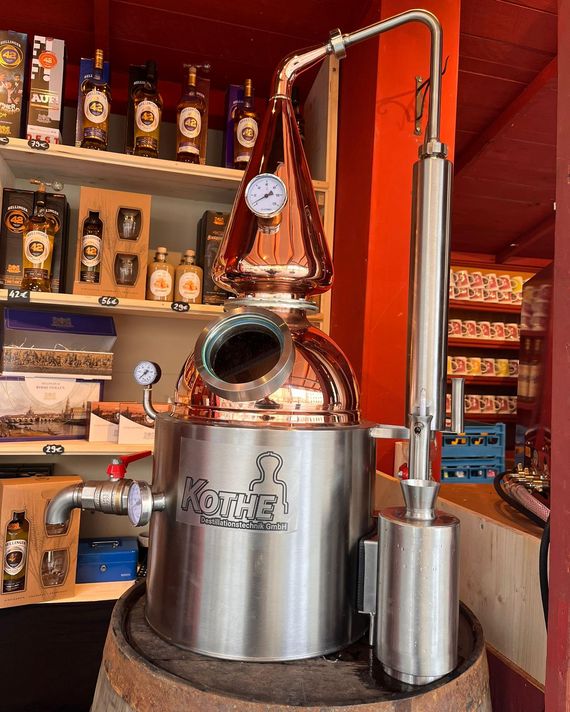

2946 - K300H - 10ltr
Distillery K300H Nr. 2946 with CE-licence according to the european pressure-machine-directive 2014/68/EU Potstill, Ø 300mm,
- Materials: high quality copper material (2-3mm strong), high-gloss polished and stainless steel
- Fill capacity: 10 L
- Heating system: 1x electric heating stick 3kW - manual operation
- Traditional Swan-Neck-Helmet
Craft distillation system. Suitable for gin or fruit and grain spirits using the double distillation process.
Well suited for testing new recipes in small quantities, and Show-Events

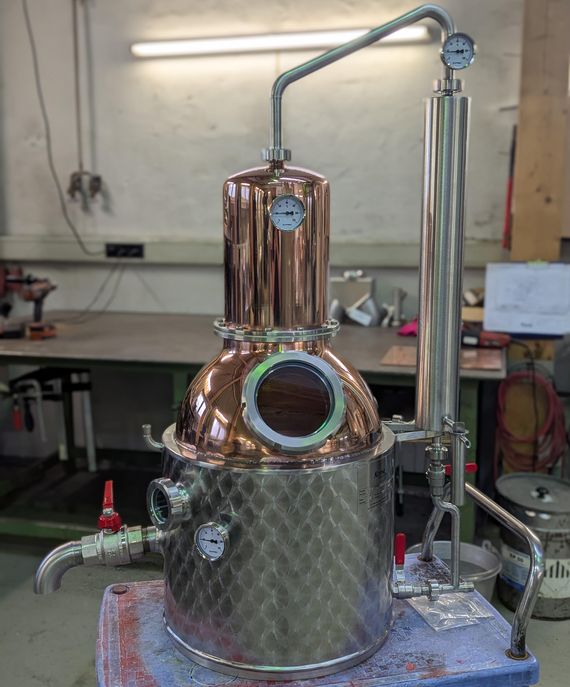

2951 - K400H - 22ltr
Distillery K400H Nr. 2951 with CE-licence according to the european pressure-machine-directive 2014/68/EU Potstill, Ø 400mm,
- Materials: high quality copper material (2-3mm strong), high-gloss polished and stainless steel
- Fill capacity: 22 L
- Heating system: 2x electric heating stick 3kW - manual operation
- Cylindric-Helmet
Craft distillation system. Suitable for gin or fruit and grain spirits using the double distillation process.
Well suited for testing new recipes in small quantities ans Show-Events
2948 - K400H - 25ltr
Distillery K400H Nr. 2948 with CE-licence according to the european pressure-machine-directive 2014/68/EU Potstill, Ø 400mm,
- Materials: high quality copper material (2-3mm strong), high-gloss polished and stainless steel
- Fill capacity: 25 L
- Heating system: 2x electric heating stick 3kW - manual operation
- Traditional Swan-Neck-Helmet
Craft distillation system. Suitable for gin or fruit and grain spirits using the double distillation process.
Well suited for testing new recipes in small quantities ans Show-Events

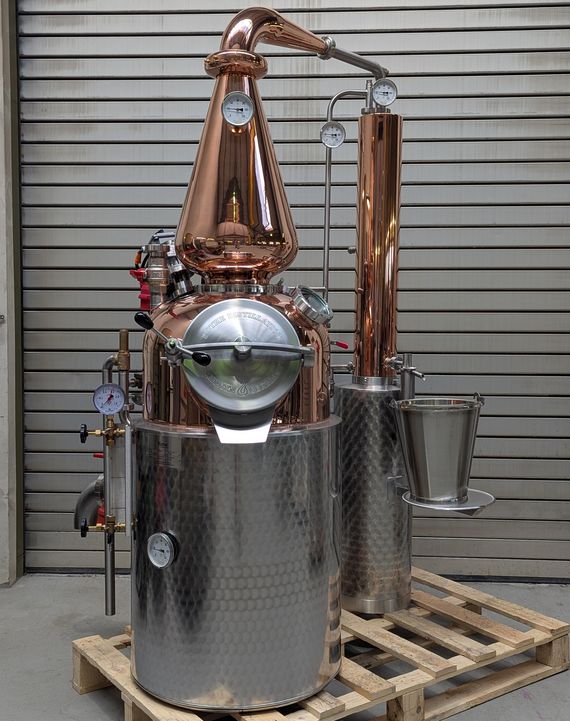

2792 - K600H - 100ltr
!!! ALREADY SOLD !!!
Distillery K600H Nr. 2792 with CE-licence according to the european pressure-machine-directive 2014/68/EU Potstill, Ø 600mm,
- Materials: high quality copper material (2-3mm strong), high-gloss polished and stainless steel
- Fill capacity: 100 L
- Stainless steel waterbath isulated
- Heating system: 3x electric heating stick 9kW
- Agitator 0,25 kW 400V 138 U/min - incl. On- and off switch, 5m cabel and CE-connector 16 Amp.
- CIP-System stainless-steel cleaning injectors in the pot and in helmet
- Traditional Swan-Neck-Helmet
- Mash fill-in made in stainless steel to overfill system to approx. 120ltr.
- Safety features: overflow, vacuum-breaker and pressure gauge, condenser with cooling-automatic and thermostatic regulator valve
- Additional viewing window in pot and additional viewing window for illumination 1 x pot with light
- Foundation for condenser in stainless steel
- Cu-Jacket for condenser for visual enhancement
Beautiful, easy-to-use distillation system. Suitable for gin or fruit and grain spirits using the double distillation process.

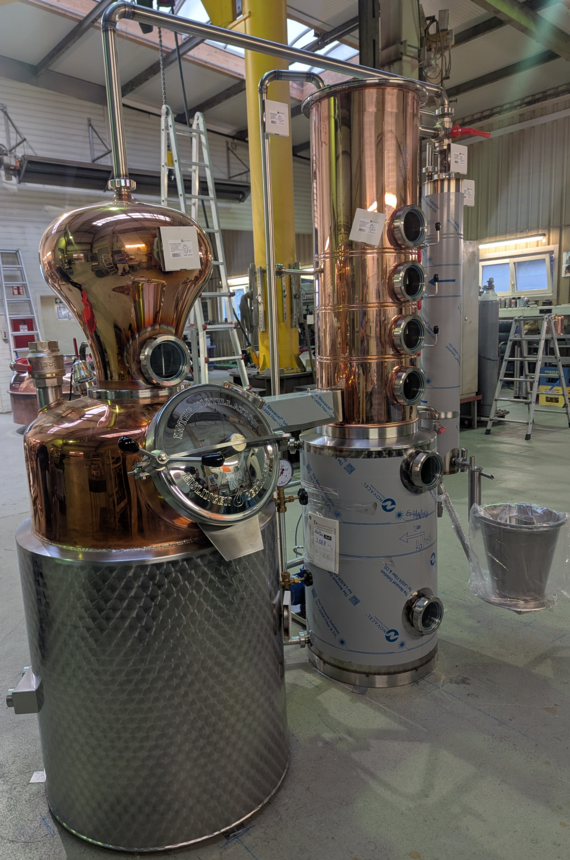

2918 - K700N - 150ltr
!!! ALREADY SOLD !!!
Distillery K700N Side mounted spedial distillation column with CE-licence according to the european pressure-machine-directive 2014/68/EU Potstill, Ø 700 mm,
- Materials: high quality copper material (~3mm strong), high-gloss polished and stainless steel
- Fill capacity: 150 L (~180L with mash fill in valve)
- Stainless steel waterbath isulated
- Heating system: 4x electric heating stick 9kW
- 3x plated Superaromator made of copper (special distillation column). Plates = Bubblecaps: new construction with increased copper surface and turbulent motion of liquid. Free adjustable fluid level on distillation plates - flexible adjustment of alcohol content and aroma of distilled mash. Including a pre-condenser in the head of the column (dephlegmator).
- 3-way ball valve with ball-covering for wash or spirit mode.
- Agitator 0,25 kW 400V 138 U/min - incl. On- and off switch, 5m cabel and CE-connector 16 Amp.
- CIP-System with force-pump stainless-steel cleaning injectors in the pot (rotating), intensifier (one per boiling-plate, dephlegmator, return-tube for the mash), transposable for circulating-cleaning
- Hot Water Tank for cleaning system
- Mash fill-in made in stainless steel to overfill system to approx. 180ltr.
- Safety features: overflow, vacuum-breaker and pressure gauge, condenser with cooling-automatic and thermostatic regulator valve
- Additional viewing window in pot and additional viewing window for illumination 1 x pot and 4 x column with lights
high-performance-still, suitable for gin, fruit and grain spirits using the oneway distillation process very economic and effective and flexible.

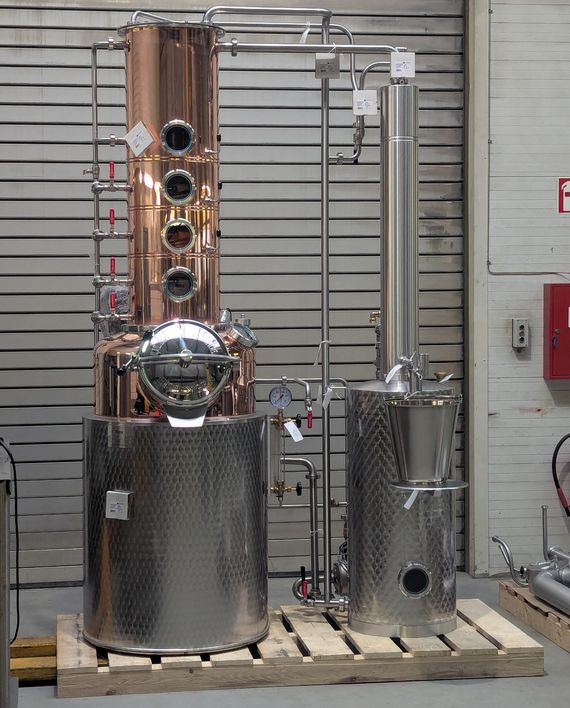

2791 - K700A - 150ltr
Distillery K700A Top-mounted special distillation column with CE-licence according to the european pressure-machine-directive 2014/68/EU Potstill, Ø 700 mm,
- Materials: high quality copper material (~3mm strong), high-gloss polished and stainless steel
- Fill capacity: 150 L (~180L with mash fill in valve)
- Stainless steel waterbath isulated
- Heating system: 4x electric heating stick 9kW
- 3x plated Superaromator made of copper (special distillation column). Plates = Bubblecaps: new construction with increased copper surface and turbulent motion of liquid. Free adjustable fluid level on distillation plates - flexible adjustment of alcohol content and aroma of distilled mash. Including a pre-condenser in the head of the column (dephlegmator).
- Agitator 0,25 kW 400V 138 U/min - incl. On- and off switch, 5m cabel and CE-connector 16 Amp.
- CIP-System with force-pump stainless-steel cleaning injectors in the pot (rotating), intensifier (one per boiling-plate, dephlegmator, return-tube for the mash), transposable for circulating-cleaning
- Hot Water Tank for cleaning system
- Mash fill-in made in stainless steel to overfill system to approx. 180ltr.
- Safety features: overflow, vacuum-breaker and pressure gauge, condenser with cooling-automatic and thermostatic regulator valve
- Additional viewing window in pot and additional viewing window for illumination 1 x pot and 4 x column with lights
High-performance-still. Suitable for gin, fruit and grain spirits using the oneway distillation process very economic and effective.

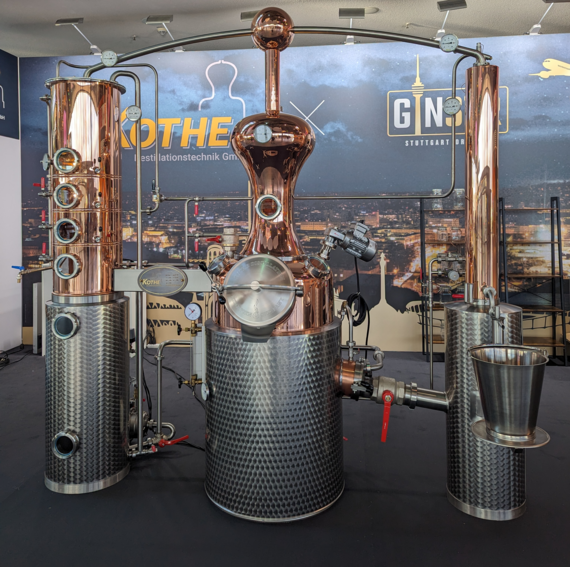

2775 - K700NE - 150ltr
Distillery K700NE Side mounted spedial distillation column with CE-licence according to the european pressure-machine-directive 2014/68/EU Potstill, Ø 700 mm,
- Materials: high quality copper material (~3mm strong), high-gloss polished and stainless steel
- Fill capacity: 150 L (~180L with mash fill in valve)
- Stainless steel waterbath isulated
- Heating system: 4x electric heating stick 9kW
- 3x plated Superaromator made of copper (special distillation column). Plates = Bubblecaps: new construction with increased copper surface and turbulent motion of liquid. Free adjustable fluid level on distillation plates - flexible adjustment of alcohol content and aroma of distilled mash. Including a pre-condenser in the head of the column (dephlegmator).
- Whisky-helmet with increased copper surface
- Additional Elegance-Edition with foundation for condenser Cu-Jacket for condenser, 3-way ball valve with ball-covering for wash or spirit mode.
- Agitator 0,25 kW 400V 138 U/min - incl. On- and off switch, 5m cabel and CE-connector 16 Amp.
- CIP-System with force-pump stainless-steel cleaning injectors in the pot (rotating), intensifier (one per boiling-plate, dephlegmator, return-tube for the mash), transposable for circulating-cleaning
- Hot Water Tank for cleaning system
- Mash fill-in made in stainless steel to overfill system to approx. 180ltr.
- Safety features: overflow, vacuum-breaker and pressure gauge, condenser with cooling-automatic and thermostatic regulator valve
- Additional viewing window in pot and additional viewing window for illumination 1 x pot, 1x helmet and 4 x column with lights
Beautiful, high-performance-still, SHOW-distillery. Suitable for gin, fruit and grain spirits using the oneway distillation process very economic and effective and flexible.

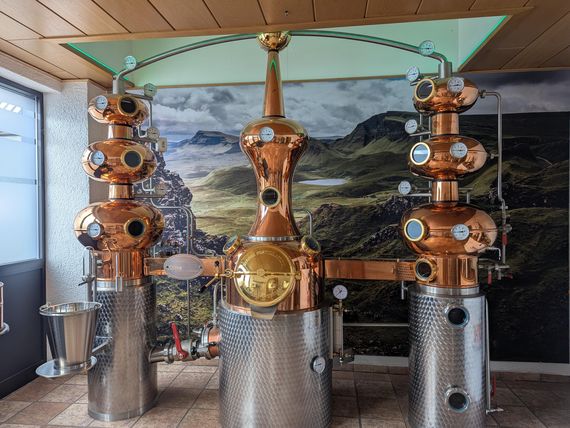

2750 - K700SL - 150ltr
Distillery K700SL Side mounted research distillation column with CE-licence according to the european pressure-machine-directive 2014/68/EU Potstill, Ø 700 mm, made of special high quality copper material, highly-polished and smooth, 3 mm strong with pear shaped helmet. Fill capacity: 150 l Fill opening: Ø 350mm Discharge Ø 200 mm and 4" ball valve waterbath isulated and completely made of stainless steel. Whisky-helmet, with viewing glasses and thermometer, connected using stainless steel flanging without visible screws or gaskets inside or outside. Research distillation column - 3 ellipsoidal CU amplifier units and VA cooler units with CU jacket and built-in cooler bags in stainless steel, with coolling-automatic and thermostatic regulator valve. Safty features: overflow, vacuum-breaker and pressure gauge. Spirit piping, outflow device for distillate and water installation: completely made of stainless steel. way of heating: electric
4x heating stick 9 KW
Agitator 0,25 kW 400V 138 U/min incl. On- and off switch, 5m cabel and CE-connector 16 Amp.
CIP-cleaning system with force-pump stainless-steel cleaning injectors in the pot (rotating), intensifier (one per boiling-plate, dephlegmator, return-tube for the mash) transposable for circulating-cleaning
Hot Water Tank for cleaning system
Additional Elegance-Edition with foundation for condenser Cu-Jacket for condenser, 3-way ball valve with ball-covering for wash or spirit mode.
Additional viewing window in pot
Additional viewing window NW 50 for full illumination of pot, column AND condenser
Mash fill-in made in stainless steel to overfill system to approx. 180ltr. possible
Goldplated high polisched parts
Unique SHOW-distillery (4 units world wide). Suitable for gin, grain spirits. Amazing view on distilling process.

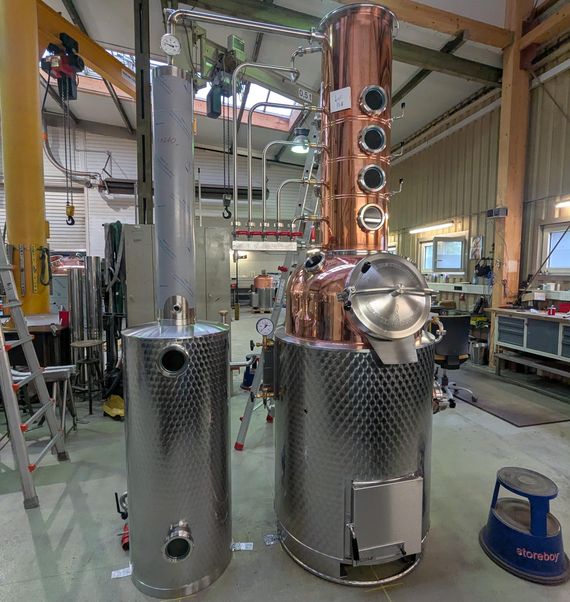

2655 - K800A - 250ltr
!!! ALREADY SOLD !!!
Distillery K800A Top-mounted special distillation column with CE-licence according to the european pressure-machine-directive 2014/68/EU Potstill, Ø 800 mm,
- Materials: high quality copper material (~3mm strong), high-gloss polished and stainless steel, steel fire-box 6-10 mm
- Fill capacity: 250 L
- Stainless steel waterbath isulated
- Heating system: Grate and ashpan for wood heating and 3x electric heating stick 12kW
- 3x plated Superaromator made of copper (special distillation column). Plates = Bubblecaps: new construction with increased copper surface and turbulent motion of liquid. Free adjustable fluid level on distillation plates - flexible adjustment of alcohol content and aroma of distilled mash. Including a pre-condenser in the head of the column (dephlegmator).
- Agitator 0,25 kW 400V 138 U/min - incl. On- and off switch, 5m cabel and CE-connector 16 Amp.
- CIP-System with force-pump stainless-steel cleaning injectors in the pot (rotating), intensifier (one per boiling-plate, dephlegmator, return-tube for the mash), transposable for circulating-cleaning
- Hot Water Tank for cleaning system
- Safety features: overflow, vacuum-breaker and pressure gauge, condenser with cooling-automatic and thermostatic regulator valve
- Additional viewing window in pot and additional viewing window for illumination 1 x pot, 4 x column with lights
High-performance-still. Suitable for gin, fruit and grain spirits using the oneway distillation process very economic and effective.

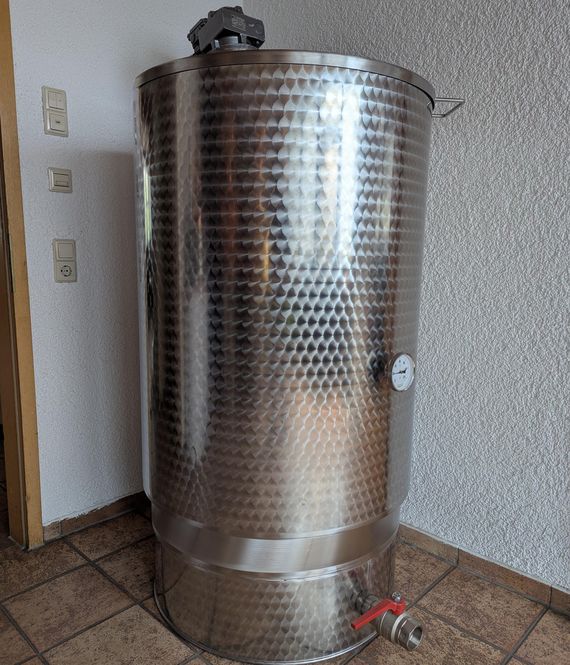

Special Mashtank - 500ltr
Mash Tank
- Stainless steel mash tank Ø 850 mm for ~500ltr.
- 2-stage agitator with 2 impeller
- Mash outlet with 2" valve
- Thermometer-- Double jacket for cooling
- Double bottom for electrical heating and cooling
- 2x 9 kW electric- screw-in heater with control unit
All of the systems are ready for collection/shipping within 2-4 days.

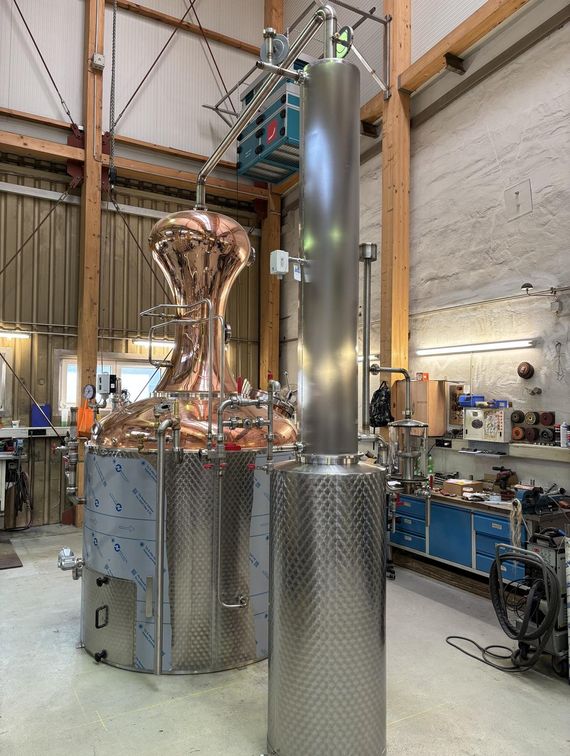

2928 - K1600H - 1.350ltr
Distillery K1600H wash still with CE-licence according to the european pressure-machine-directive 2014/68/EU Potstill, copper pot Ø 1.600 mm
- Materials: high quality copper material (~4-5mm strong), high-gloss polished and stainless steel
- Fill capacity: 1.350 L
- Stainless steel waterbath isulated
- Heating system: Steam
- CIP-Cleaning H without force-pumpe cleaning nozzle in helmet and pot
- Foundation for condenser in stainless steel
- Agitator 2,2 kW 138 rpm
- Closed chamber alcohol receiver for visual control and alcohol concentration-scale with glass cover
- Safety features: overflow, vacuum-breaker and pressure gauge, condenser with cooling-automatic and thermostatic regulator valve
- Mash fill-in made in stainless steel
- Whisky-helmet with increased copper surface
- Additional viewing window in pot and additional viewing window for illumination 1 x pot light
Beautiful system with increased coppersurface on helmet. For wash and spirit (double distillation), easy-to-use distillation system.
2927 - K1800H - 2.000ltr
Distillery K1800H wash still with CE-licence according to the european pressure-machine-directive 2014/68/EU Potstill, copper pot Ø 1.800 mm
- Materials: high quality copper material (~4-5mm strong), high-gloss polished and stainless steel
- Fill capacity: 2.000 L
- Stainless steel waterbath isulated
- Heating system: Steam
- CIP-Cleaning H without force-pumpe cleaning nozzle in helmet and pot
- Foundation for condenser in stainless steel
- Agitator 2,2 kW 138 rpm
- Closed chamber alcohol receiver for visual control and alcohol concentration-scale with glass cover
- Safety features: overflow, vacuum-breaker and pressure gauge, condenser with cooling-automatic and thermostatic regulator valve
- Mash fill-in made in stainless steel
- Whisky-helmet with increased copper surface
- Additional viewing window in pot and additional viewing window for illumination 1 x pot light
Beautiful system with increased coppersurface on helmet. For wash and spirit (double distillation), easy-to-use distillation system.

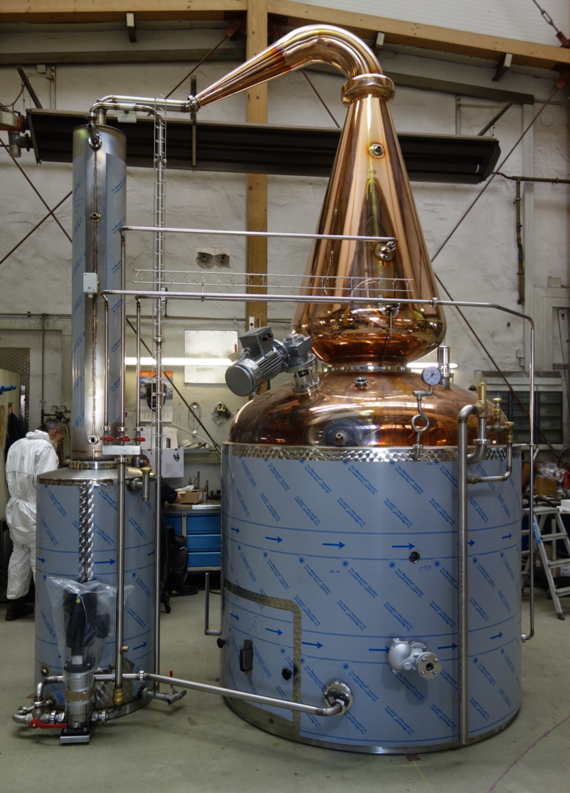

2891 - K1800H - 2.000ltr
Distillery K1800H wash still with CE-licence according to the european pressure-machine-directive 2014/68/EU Potstill, copper pot Ø 1.800 mm
- Materials: high quality copper material (~4-5mm strong), high-gloss polished and stainless steel
- Fill capacity: 2.000 L
- Stainless steel waterbath isulated
- Heating system: Steam
- CIP-cleaning system with force-pump stainless-steel cleaning injectors in the pot (rotating) and helmet, transposable for circulating-cleaning
- Hot Water Tank for cleaning system
- Agitator 1,5 kW 138 rpm/min
- Closed chamber alcohol receiver for visual control and alcohol concentration-scale with glass cover
- Safety features: overflow, vacuum-breaker and pressure gauge, condenser with cooling-automatic and thermostatic regulator valve
- Mash fill-in made in stainless steel
- Traditional Swan-Neck-Helmet (built according to Scottish whisky regulations)
- Additional viewing window in pot and additional viewing window for illumination 1 x pot light
- Automatic control centre with remote access.
Beautiful, traditional whisky still. For wash and spirit (double distillation), easy-to-use distillation system.
2897 - K1800NP - 2.000ltr
Distillery K1800NP spirit still with CE-licence according to the european pressure-machine-directive 2014/68/EU Potstill, copper pot Ø 1.800 mm
- Materials: high quality copper material (~4-5mm strong), high-gloss polished and stainless steel
- Fill capacity: 2.000 L
- Stainless steel waterbath isulated
- Heating system: Steam
- 24x plated double superaromator made of copper (special distillation columns). Plates = Bubblecaps: new construction with increased copper surface and turbulent motion of liquid. Free adjustable fluid level on distillation plates - flexible adjustment of alcohol content and aroma of distilled mash. Including a pre-condenser in the head of the column (dephlegmator).
- CIP-System with force-pump stainless-steel cleaning injectors in the pot (rotating), intensifier (one per bubble plate, dephlegmator, return-tube for the mash), transposable for circulating-cleaning
- Hot Water Tank for cleaning system
- Agitator 1,5 kW 138 rpm/min
- Safety features: overflow, vacuum-breaker and pressure gauge, condenser with cooling-automatic and thermostatic regulator valve
- Mash fill-in made in stainless steel
- Traditional Swan-Neck-Helmet (built according to Scottish whisky regulations)
- Additional viewing window in pot and additional viewing window for illumination 1 x pot light
- Closed chamber alcohol receiver or visual control and alcohol concentration-scale with glass cover for head, heart and tail separation with storage tanks
- 3-way ball valves for wash or spirit mode or double column mode or botanical column
- Automatic control centre with remote access.
Professional, high-performance-still. Built according to Scottish whisky regulations. Suitable for all kindes of spirits. absolut flexible due to double column, botanical column or wash mode.

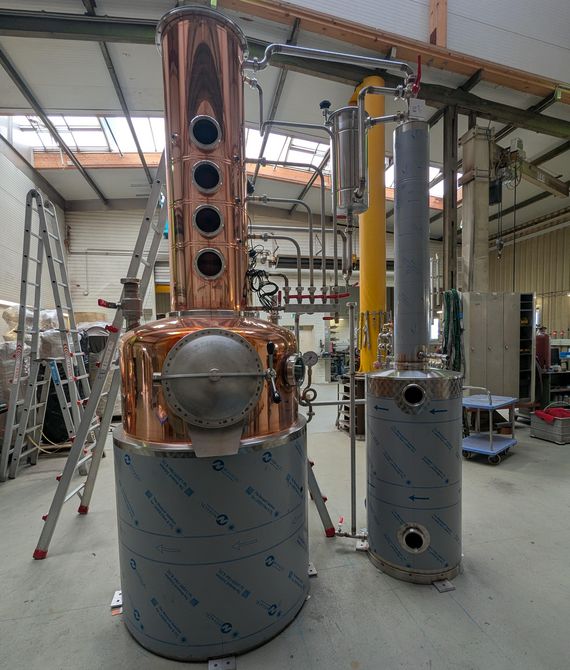

2959 - K1000A - 500ltr
Distillery K1000A spirit still with CE-licence according to the european pressure-machine-directive 2014/68/EU Potstill, copper pot Ø 1.000 mm
- Materials: high quality copper material (~4-5mm strong), high-gloss polished and stainless steel
- Fill capacity: 500 L
- Stainless steel waterbath isulated
- Heating: Steam (optional 4x12kW heating sticks)
- 3x plated Superaromator made of copper (special distillation column). Plates = Bubblecaps: new construction with increased copper surface and turbulent motion of liquid. Free adjustable fluid level on distillation plates - flexible adjustment of alcohol content and aroma of distilled mash. Including a pre-condenser in the head of the column (dephlegmator).
- Agitator 1,1 kW 400V 138 U/min - incl. On- and off switch, 5m cabel and CE-connector 16 Amp.
- CIP-System with force-pump stainless-steel cleaning injectors in the pot (rotating), intensifier (one per boiling-plate, dephlegmator, return-tube for the mash), transposable for circulating-cleaning
- Hot Water Tank for cleaning system
- Mash fill-in made in stainless steel to overfill system to approx. 180ltr.
- Safety features: overflow, vacuum-breaker and pressure gauge, condenser with cooling-automatic and thermostatic regulator valve
- Additional viewing window in pot and additional viewing window for illumination 1 x pot and 4 x column with lights
- Botanical column for herbs and seeds
High-performance-still. Suitable for gin, fruit and grain spirits using the oneway distillation process very economic and effective.
All of the systems are ready for collection/shipping within 2-4 days.
Cosmopolitan mindset meets local craftsmanship
Imagine the pride of crafting a spirit that is uniquely yours, a product that embodies your creativity, your vision, and your passion.
With our distillation system, you have the power to transform raw ingredients into a masterpiece, to create a brand that tells your story and captivates the senses of your audience.
Contact us today to discover how our distillation systems can transform your operations and drive growth for years to come.
Let´s go...
"with passion for distilling"
